Welding & Cutting Fume Extraction

SparkShield

SparkShield
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
SparkShield - Thumbnail
Description

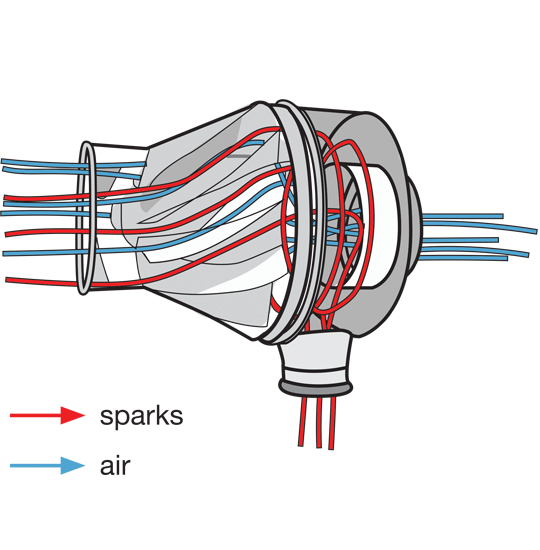

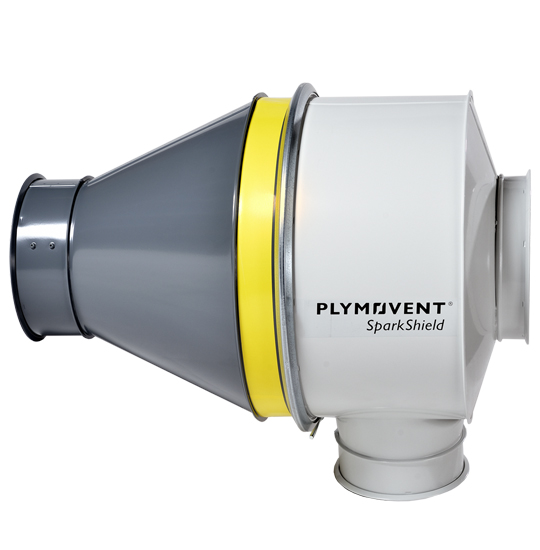

The cyclone spark arrester, SparkShield, is a fire safety product, developed to reduce the risk of fire and to increase the filter’s lifespan. SparkShield prevents sparks and spatters from entering the ductwork in welding fume extraction systems and reaching the combustible filter cartridge.

A dustbin collects all remaining sparks at a safe distance from the main filter. There are four models available, suitable for 250mm, 400mm 500mm and 630mm duct sizes.
Features
  • Suitable for welding and cutting applications
  • Easy install even in existing extraction systems
  • Compact in-line design
  • Duct clamp connections for easy installation, service and dismantling

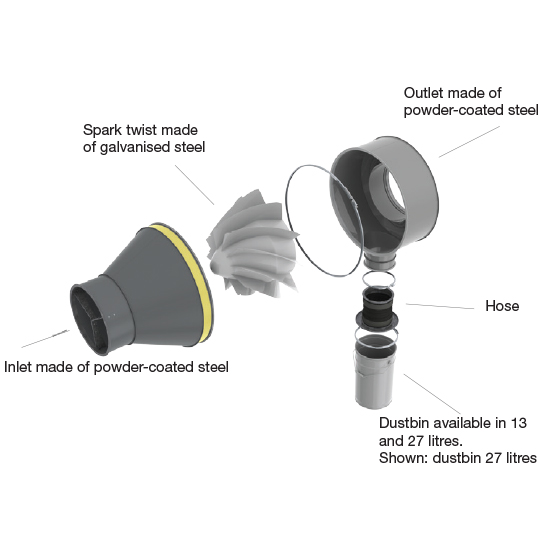

  • Body designed for easy maintenance
