Description

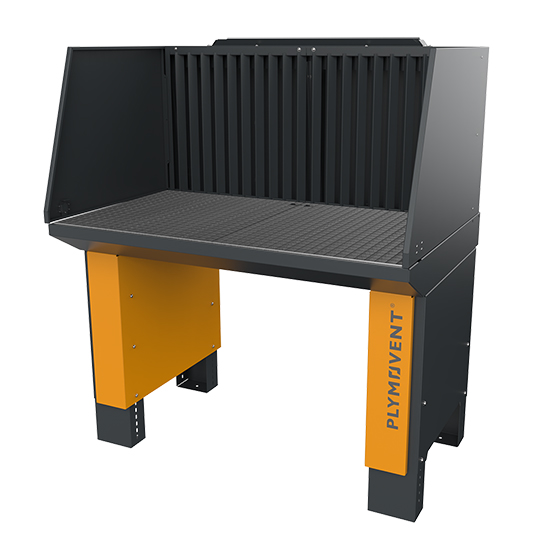

The DraftMax Eco is a downdraft workbench designed to connect seamlessly to an external extraction/filtration system. Approximately 80% of the air is extracted through the backdraft panel, with the remaining 20% drawn through the work grid.

The DraftMax Eco can also be fitted with optional spark arresters, which mount directly into the backdraft panel. This unit is ideal for ductwork applications, as it requires connection to an external fan and filtration system, such as Plymovent’s MDB filtration unit.
Features
  • Suited for ductwork
  • Efficient fume extraction by down and backdraft
  • The working height of the table is adjustable
  • Includes a dust collection tray for two optional dust containers
  • The extraction system easily connects to the air outlet positioned on top of the backdraft panel
