WallPro 2.0

Welding & Cutting Fume Extraction

Description

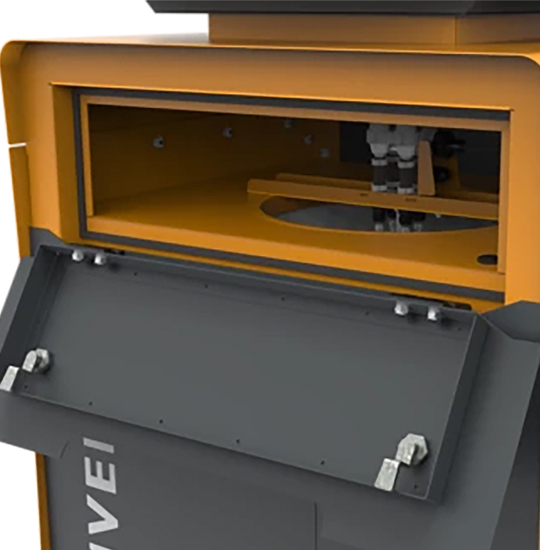

The WallPro 2.0 is a self-cleaning welding fume extraction system with compact housing and a large filter (20m²). It has low operating costs, a fully automatic filter cleaning system and can be used with one or two extraction arms. To minimise exposure during general maintenance activities, the WallPro 2.0 is built with a unique dust-free maintenance concept thanks to the valve between the filter and the dust container.

Features

Unique dust-free maintenance concept
Safe working environment due to a high-efficiency filter cartridge
In compliance with welding fume class W3
Low operating costs and long filter life
Self-cleaning filter, with additional offline filter cleaning function
Choose from 3 power levels, according to your specific needs
Can be fitted with an additional HEPA filter module (filter classification H14)

Available in three models: Standard model, Power model and PowerPlus model

Standard
The Standard model is suitable for regular welding activities where an extraction capacity of 1000m³/h per arm is sufficient. It is available with one or two KUA extraction arms, with lengths of 3m or 4m and a diameter of 160mm.

Power
The Power model is available with one or two KUA extraction arms of 3m or 4m in length and a diameter of 200mm. Suitable for welding applications where an extraction capacity of 1450m³/h per arm is required.

PowerPlus
The PowerPlus model has an extraction capacity of 1800m³/h and is suitable for applications with very high welding fume production such as automatic welding, high amperage welding and flux-cored arc welding. It comes with the most powerful fan and one KUA extraction arm with a diameter of 200mm and 3m or 4m in length.
