Description

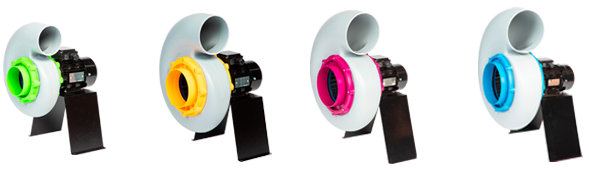

Seat fans are designed to exhaust fumes from corrosive environments such as laboratories, fume cupboards, battery rooms and chemical plants. They include a high density, UV treated polypropylene housing and impeller to ensure maximum protection against acids and corrosion.

There are 5 models in the range to suit duct diameters from 125 to 315mm.

Typical Application
Designed to exhaust fumes from corrosive environments such as laboratories, fume cupboards, battery rooms and chemical plants.

Features

Cowl rotates to 8 discharge positions by 45° increments
LG and RD handing from SEAT15-30, LG only for SEAT35
Air flows up to 2500L/s
Static Pressures up to 1500Pa
Forward curved centrifugal impeller
Direct drive, asynchronous motor, single or three phase, IP55
Explosion proof motors available on request
Recommended up to 60°C

Single Phase Models

Product Code	Diameter[mm]	Speed[rps]	kW	Amps	Avg. dB(A) at 3m	Max Pressure [Pa]	Max Volume [m³/s]
SEAT152S003	125	48	0.37	2.7	54	407	0.20
SEAT202S007	160	48	0.75	4.73	64	906	0.39
SEAT154S002	125	24	0.25	2.2	42	104	0.12
SEAT204S002	160	24	0.25	2.2	49	229	0.36
SEAT254S003	200	24	0.37	2.9	53	387	0.50
SEAT304S011	250	24	1.1	7	59	556	1.00

Three Phase Models

Product Code	Diameter[mm]	Speed[rps]	kW	Amps	Avg. dB(A) at 3m	Max Pressure [Pa]	Max Volume [m³/s]
SEAT152B003	125	46	0.37	1.04	54	406	0.20
SEAT202B011	160	48	1.1	2.41	64	905	0.57
SEAT252B030	200	48	3	5.78	67	1536	1.00
SEAT154B002	125	23	0.25	0.75	42	106	0.12
SEAT204B002	160	23	0.25	0.75	49	233	0.36
SEAT254B003	200	23	0.37	1.03	53	383	0.50
SEAT304B011	250	24	1.1	2.6	59	557	1.00
SEAT156B001	125	15	0.18	0.66	30	43	0.08
SEAT206B001	160	15	0.18	0.66	40	95	0.23
SEAT256B001	200	15	0.18	0.66	43	148	0.43
SEAT306B007	250	16	0.75	2.02	49	228	0.85
