F.. Mounting Feet for Axial Fans
Features
All feet are galvanised steel and designed to support the fan and/or attenuator horizontally.
Should the installation require the fans to be installed in a vertical plane please contact Fantech.
Bolt-on feet are generally supplied loose in pairs.

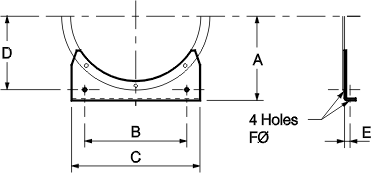

Dimensions
| Product Code |
A |
B |
C |
D |
E |
F |
| F031 |
200 |
265 |
315 |
180 |
25 |
13 |
| F035 |
230 |
305 |
355 |
210 |
25 |
13 |
| F040 |
250 |
350 |
400 |
230 |
25 |
13 |
| F045 |
280 |
400 |
450 |
255 |
25 |
13 |
| F050 |
315 |
450 |
500 |
290 |
25 |
13 |
| F056 |
355 |
510 |
560 |
330 |
25 |
13 |
| F063 |
400 |
580 |
630 |
375 |
25 |
13 |
| F071 |
450 |
660 |
710 |
425 |
25 |
13 |
| F080 |
500 |
750 |
800 |
475 |
25 |
13 |
| F100 |
630 |
950 |
1000 |
595 |
50 |
15 |
| F125 |
780 |
1200 |
1250 |
745 |
50 |
15 |
| F140 |
813 |
1300 |
1400 |
773 |
50 |
15 |
| F160 |
950 |
1500 |
1600 |
900 |
50 |
15 |
| F180 |
1050 |
1700 |
1800 |
1000 |
50 |
15 |
| F200 |
1150 |
1900 |
2000 |
1100 |
50 |
15 |
