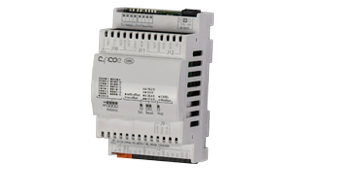

Aviator Max Expansion Module

Connect up to 5 expansion modules to increase the functions on the Aviator MAX controller. Each expansion module adds the following:

• 1 x Extra alarm output
• 1 x Extra run indication output
• 3 x Analogue fan control
• 4 x sensor inputs
• 3 x programmable switch Inputs

Standard I/O

• 3 x Digital inputs
• 6 x Digital outputs (relay)
• 4 x Analogue inputs
• 3 x Analogue outputs

Ports

• Modbus to Aviator MAX connection
